Fracture Pump

BJB Fracture Pump

I.General



The horizontal triplex plunger Fracture Pumps are specially used to deliver various viscous and non-viscous hydraulic fluids such as fresh water and mud as the trenchless large-tonnage horizontal directional drilling device. It was designed based on the existing mature mud pumps to meet with the wild trenchless directional drilling equipment market demands.

The pump consists of the power end, hydraulic end, combination of plunger, and lubrication system components, which features super strengths and innovations.



II.Tech strengths


It has a small volume, light weight, large discharge flow, high discharge pressure, input power, torque and troubleshooting fast, which perfectly fits the characteristics of directional horizontal drilling construction and greatly helps to develop the development and popularization of large-tonnage horizontal directional drilling technology.

III.User benefit

The development of the mud pump fill the blank of horizontal directional drilling mud pump with large tonnage in China, greatly improve the ecological environment of trenchless technology construction, protect the ecological environment of buildings, farmland, rivers and so on, accord with the development concept of green environmental protection.

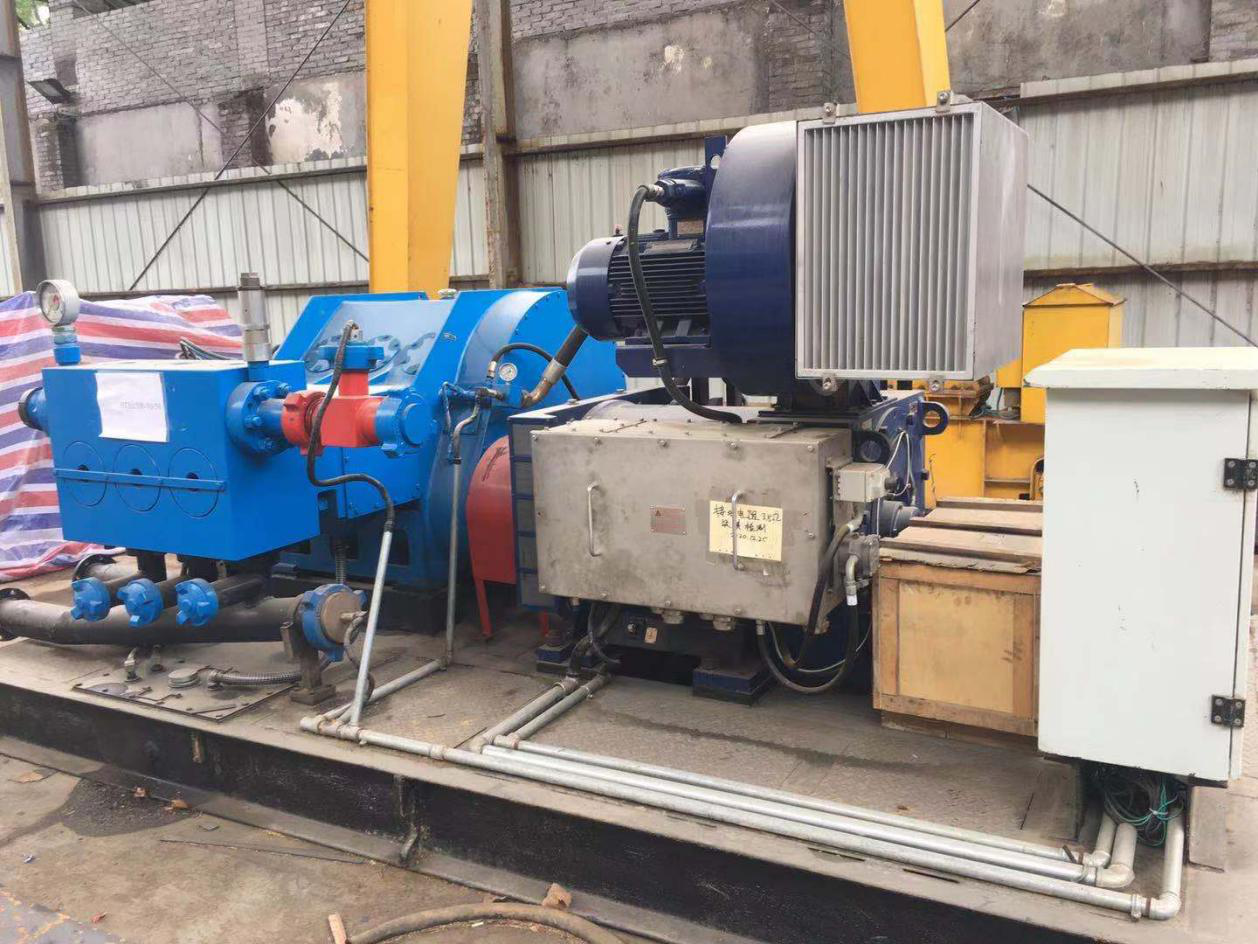

III. NB1500 Fracture Pump





Application: Intermittent work in the oil and gas wells, such fracturing, cementing and completion.

       MAX. Power1119kW1500HP)

       Stroke203.2mm8″

       MAX. Pressure110MPa (15950psi)

       MAX. Flow150m3/h (2500L/min)

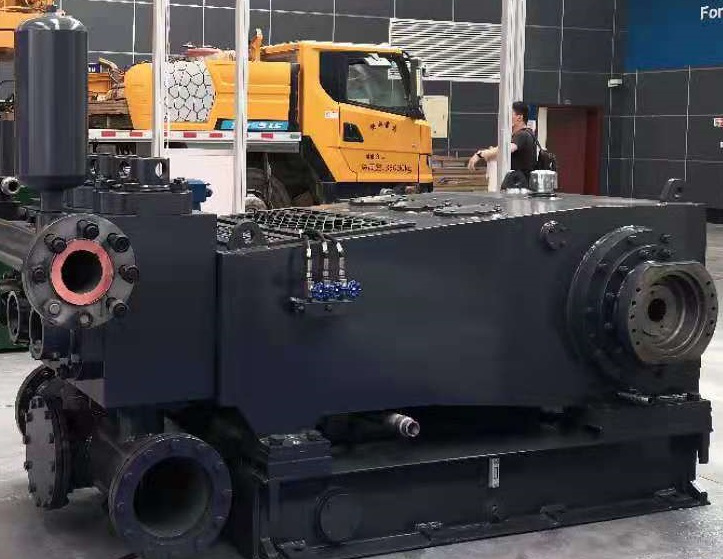

IV. NB600 Fracture Pump





Application: Intermittent work in the oil and gas wells, such fracturing, cementing and completion.

Rated Power:445kW600 HP

Stroke :324 rpm

Rated Pressure:40 MPa (5800psi)

Max.Displacement:87.5 m3/h (Diesel engine’s speed:2100 r.p.m)



Maily used for fracturing and cementing.
